تفاصيل المنتج
اسم العلامة التجارية: TGFQ
رقم الموديل: ر375-7/ر360-7
شروط الدفع والشحن
الحد الأدنى لكمية: 1
الأسعار: 1480.00usd
شروط الدفع: TT/LC/
القدرة على العرض: أكثر من 150

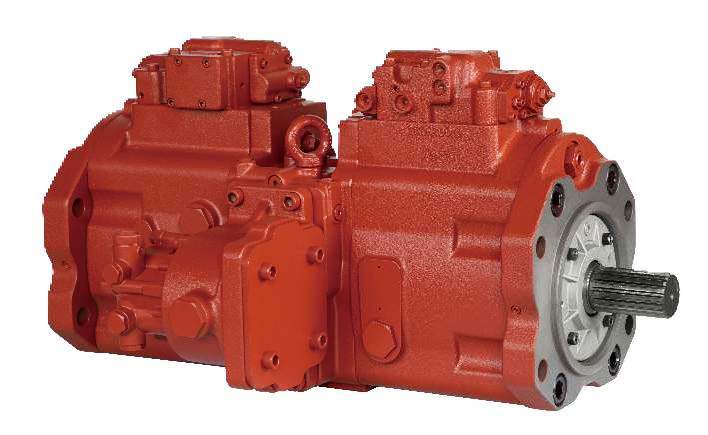

Part Name: |
Hydraulic pump |
Qaulity: |
Top Quality |
Applicable Industries: |
Machinery Repair Shops, Energy & Mining |
Pump number: |
K3V180DTP-9C0G |
Part Number: |
31NA-10010 |
Weight: |
201KG |
Bucket Capacity: |
0.2 M3 |
Apply To Mode: |
kobelco / Hydraulic Excavator |
Mechanical: |
Excavator |
Part Name: |
Hydraulic pump |
Qaulity: |
Top Quality |
Applicable Industries: |
Machinery Repair Shops, Energy & Mining |
Pump number: |
K3V180DTP-9C0G |
Part Number: |
31NA-10010 |
Weight: |
201KG |
Bucket Capacity: |
0.2 M3 |
Apply To Mode: |
kobelco / Hydraulic Excavator |
Mechanical: |
Excavator |
Fleet managers trust the K3V140DT for EC290s due to its low total cost of ownership. Fuel savings, reduced maintenance, and long service life lower operational expenses. Consistent performance across multiple units ensures uniform productivity, simplifying fleet management. It’s a cost-effective investment that boosts both efficiency and profitability.
| # | Part No | Part Name | Qty. |
| * | 31NA-10010 | MAIN PUMP | 1 |
| S012 | XJBN-00567 | BLOCK-CYLINDER | 2 |
| 2953802067 | |||
| 111 | XJBN-00574 | SHAFT-DRIVE(F) | 1 |
| 2933801244 | |||
| 113 | XJBN-00573 | SHAFT-DRIVE(R) | 1 |
| 2924250-0008 | |||
| 114 | XJBN-00572 | COUPLING-SPLINE | 1 |
| 2943800613 | |||
| 123 | XJBN-00571 | BEARING-ROLLER | 2 |
| PNUP309ET | |||
| 124 | XJBN-00570 | BEARING-NEEDLE | 2 |
| PRNA6932R | |||
| 127 | XJBN-00569 | SPACER-BEARING | 3 |
| 2903370-0018 | |||
| 130 | XJBN-00568 | BOOSTER | 1 |
| 2933800926 | |||
| S151 | XJBN-00566 | PISTON | 18 |
| 38B00-151 | |||
| S152 | XJBN-00565 | SHOE | 18 |
| 38B00-152 | |||
| 153 | XJBN-00020 | PLATE-SET | 2 |
| 2943800488 | |||
| 156 | XJBN-00564 | BUSHING-SPHERICAL | 2 |
| 157 | XJBN-00541 | SPRING-CYLINDER | 18 |
| 2953802061 | |||
| 211 | XJBN-00023 | PLATE-SHOE | 2 |
| 371A00AA-124 | |||
| S212 | XJBN-00012 | PLATE-SWASH | 2 |
| 2923800908 | |||
| S214 | XJBN-00013 | BUSHING-TILTING | 2 |
| P1R222616 | |||
| 251 | XJBN-00560 | SUPPORT-S.P. | 2 |
| 2923800906 | |||
| 261 | XJBN-00025 | COVER(FR)-SEAL | 1 |
| 2943800518 | |||
| 271 | XJBN-00026 | CASING-PUMP | 2 |
| 2923800904 | |||
| 311 | XJBN-00559 | COVER-VALVE(F) | 1 |
| 2923801932 | |||
| 312 | XJBN-00558 | COVER-VALVE(R) | 1 |
| 2923801934 | |||
| S313 | XJBN-00557 | PLATE-VALVE(R) | 1 |
| 2933801022 | |||
| S314 | XJBN-00556 | PLATE-VALVE(L) | 1 |
| 2933801023 | |||
| 401 | XJBN-00028 | SCREW | 4 |
| 2953801868 | |||
| 402 | XJBN-00555 | SCREW-HEX SOC HD | 4 |
| 2953802438 |
